Interval Timer

The profiler can also measure a specific time between two triggers. The first time the trigger happens, the timer is started and the second time, it is stopped. The trigger can be setting of the Q flag or execution of OUT 1 to 7.

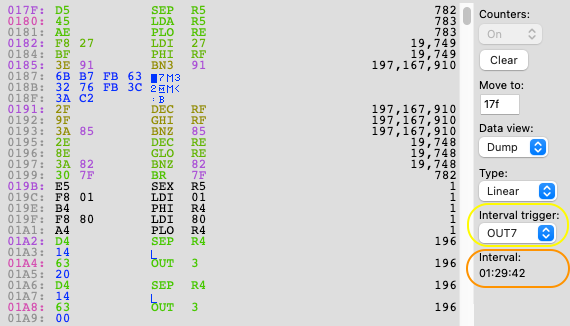

The trigger type can be set with the 'Interval trigger' selector (yellow ellipse) and the interval time is shown below (orange ellipse).
