Membership Card Emulator

This emulator will emulate the Membership Card. Additional information about the Membership Card can be found on the Emma 02 site.

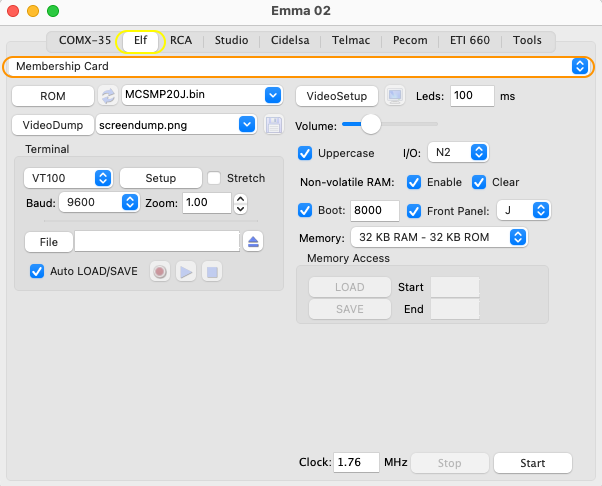

To start the Membership Card emulator first select the Elf tab (yellow ellipse) followed by the Membership Card tab (orange ellipse) and then press Start:

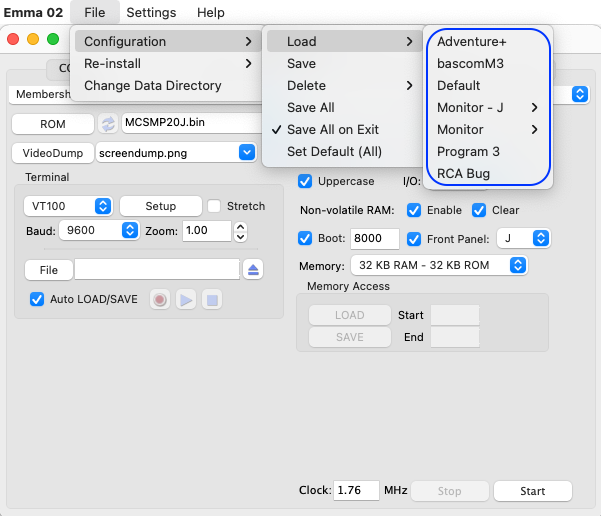

The above will have started the default Membership Card emulator configuration running Chuck's Monitor in ROM on address 0 with front panel rev J. To change to other predefined configurations load one of them with the menu option below (blue ellipse) following the grey menu:

Summary of the Membership Card configurations:

Adventure+

Richard Goedeken's Adventureland+ game, see Github, 1802 Adventureland+ for more details.

BascomM3

Richard's BascomM3

Monitor J

Chuck's Membership Card monitor MCSMP20 with front panel rev J in 3 different configurations:

• 64 KB RAM and monitor loaded at address 0
• 32 KB ROM at address 0 with monitor loaded in ROM
• 32 KB ROM at address hex 8000 with monitor loaded in ROM

Monitor

Chuck's Membership Card monitor with front panel rev I in 4 different configurations:

• 64 KB RAM and monitor loaded at address 0
• 64 KB RAM and monitor loaded at address hex 8000
• 32 KB ROM at address 0 with monitor loaded in ROM
• 32 KB ROM at address hex 8000 with monitor loaded in ROM

Program 3

Example program 3

RCA Bug

RCA Monitor program as described in IPSO facto number 10 with a SW change to run on the Membership Card.

This chapter also includes:

ROM and RAM Files
Memory
NVR
Control Windows
Boot Method
