Navigation

This chapter describes the different navigation options on the direct assembler tab.

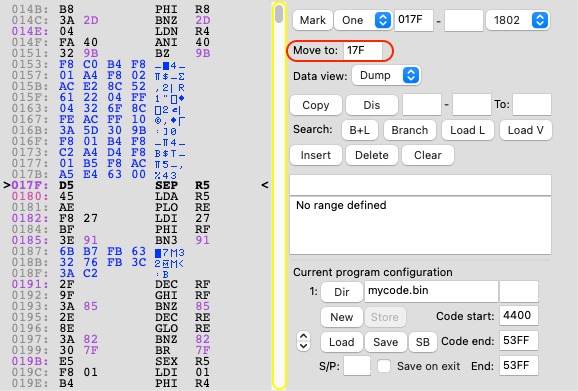

The scrollbar (yellow ellipse) can be used to move through the code where the top of the scrollbar will start at address 0 and bottom at FFFF. Arrow keys up/down' will move the code one line up/down and 'shift' arrow up/down will move one page up/down. Alternatively an address can be specified in the 'Move to:' field (red ellipse) which will move the assembler directly to the specified address.
